DS4 Test Station

HALaser Systems offers a wide range of controller boards with a lot of different signals, functions and features. Setting them into operation with complex machinery and additional equipment can be a non-trivial task when a lot of hard- and software dependencies have to be resolved at once during mounting and installation of such a machine.

Here the DS4 testboard provides a fast and easy possibility to check hardware signals - not only to exclude the possibility of hardware damages or wrong wiring but also to check the own configuration and set-up.

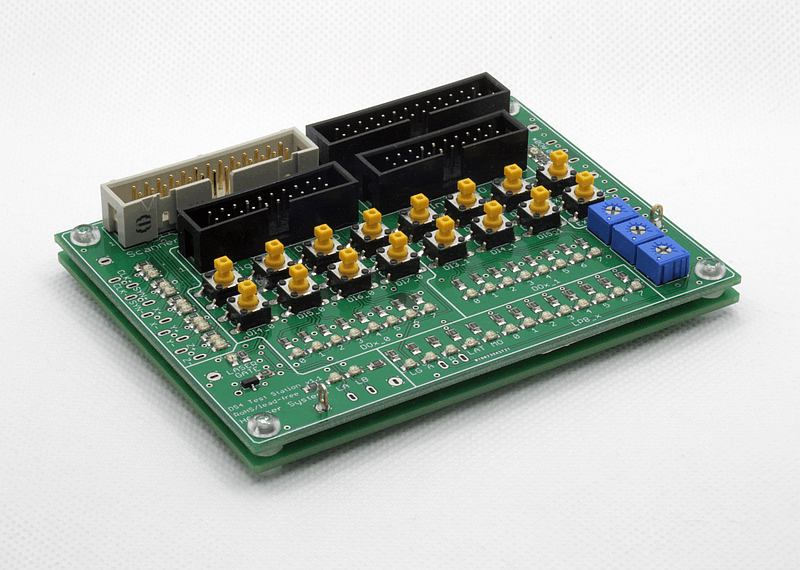

The DS4 Test Station offers the following functions and features

• Testing of all hardware signals of E1701D controller board and extensions
• Testing of hardware signals of all extension boards available for E1701A controller
• Testing of hardware signals of all extension boards available for E1701C controller
• Testing of all hardware signals of E1701M controller board
• Testing of hardware signals of E1803D controller board and Intelli-IO extension
• Quick visual inspection of signals via integrated LEDs
• Easy access to all output signals via test points
• Fast setting of digital input signals via integrated buttons
• Simple applying of analogue input signals via integrated trimmers
• Very handy size of about 100 mm x 75 mm
• Hardware is quality made in EU/Germany
