All our controller cards are designed in a way to work with all types of lasers that are available, no matter what kind of hardware interface they provide and what control signals they need. So when using any of our controllers, you are free to choose your desired type of laser source.

Nevertheless for a quick and easy integration, together with a highly qualified partner, we offer a set of ready-to-use lasers which can be connected to our controllers simple and easy and which are verified to work in the hardware combination shown below without the need to have additional circuitry or wiring.

The following tables give a quick overview about these laser sources, their technical data and the possibilities to connect them with our controller cards. Additionally it is described what configurations are required in BeamConstruct and what connections need to be established in order to have a quick and easy start with these laser types.

All these lasers ship from Germany and all possible maintenance can be done by our service partner here in Germany too.

MOPA Fiber Lasers 20..250 W | Pulsed Fiber Lasers 20..100 W | Pulsed/CW Fiber Lasers 75..4500 W | CO₂ Lasers 17..55 W

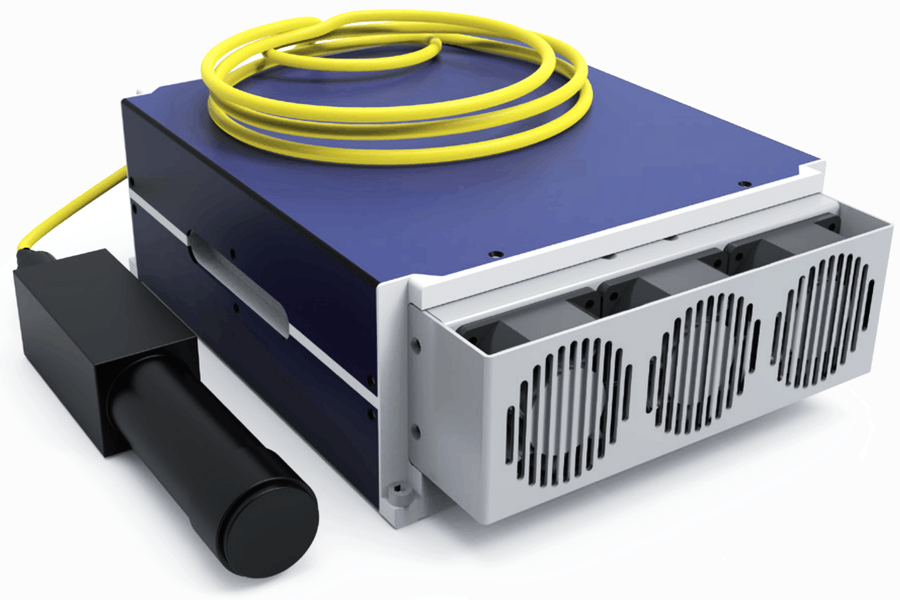

The PMX series MOPA lasers provide a wide frequency range, optimised optical quality and can be operated with both, E1701D and E1803D controller card. In BeamConstruct they need to be configured as "MOPA (MO, LP8, Latch)" and with PWM-control-mode "PWM value via LaserB, LP8_1, LP8_2" to set a custom pulse-width.

Model	RFL-P20MX	RFL-P30MX	RFL-P60MX	RFL-P70MX	RFL-P100MX	RFL-P200MX	RFL-P250MX
Output Power	20 W	30 W	60 W	70 W	100 W	200 W	250 W
Wavelength	1064 nm
Frequency range	1..2000 kHz					1..4000 kHz
Output power variances	<3 %					<5 %
Output beam diameter	7±1 mm		6±1 mm			7±1 mm
Beam quality	M²<1,3	M²<1,6				M²<1,8
Polarisation	random
Pulsewidth	2..500 nsec		10..350 nsec
Single pulse energy	0,7 mJ	1 mJ	1,5 mJ
Output power range	1..100 %
Laser cable length	3 m (optionally also available: 2 m, 4 m or 5 m)
Required power supply	24 V, 150 W	24 V, 200 W	24 V, 450 W	24 V, 450 W	24 V, 500 W	48 V, 800 W	48 V, 1 kW
Cooling	Air
Dimensions	286x215x95 mm		360x390x123 mm			395x460x130 mm	460x395x131 mm
Possible scanhead	HALscan 10.20 1064 nm		HALscan 10.20 1064 nm (with high power mirrors)		HALscan 16.20 1064 nm
Mounting to scanhead	e.g. via compact and easy to use HKL-17-03-LK-00x plate/bracket collimator set
Connection with E1701D	E1701D baseboard plus LP8 Extension optionally: Digi I/O Extension (to read error states of the laser) optionally: E1701dock (for simple and easy connection with the laser using a 1:1 D-SUB25 cable only)
Connection with E1702S	E1702S baseboard optionally: Digi I/O Extension (to read error states of the laser)
Connection with E1803D	E1803D controller optionally: E1803dock MOPA (for simple and easy connection with the laser using a 1:1 D-SUB25 cable only)

The PQB series pulsed fiber lasers come with a very compact design and a competitive price. They can be operated with both, E1701D and E1803D controller card. In BeamConstruct they can be configured as "MOPA (MO, LP8, Latch)".

Model	RFL-P20QB	RFL-P30QB	RFL-P50QB	RFL-P100Q
Output Power	20 W	30 W	50 W	100 W
Wavelength	1064 nm
Frequency range	20..60 kHz	30..60 kHz	50..100 kHz	20..200 kHz
Output power variances	<3 %
Output beam diameter	7±1 mm			6,5±1 mm
Beam quality	M²<1,5		M²<1,8
Polarisation	random
Pulsewidth	90..110 nsec (at 20 kHz)	120..150 nsec (at 30 kHz)	120..150 nsec (at 50 kHz)	50..110 nsec (at 20 kHz)
Single pulse energy	1 mJ (at 20 kHz)	1 mJ (at 30 kHz)	1 mJ (at 50 kHz)	1 mJ (at 100 kHz)
Output power range	10..100 %
Laser cable length	3 m (optionally also available: 2 m, 4 m or 5 m)
Required power supply	24 V, 170 W	24 V, 240 W	24 V, 340 W	24 V, 500 W
Cooling	Air
Dimensions	290x215x95 mm			390x360x123 mm
Possible scanhead	HALscan 10.20 1064 nm			HALscan 16.20 1064 nm
Mounting to scanhead	e.g. via compact and easy to use HKL-17-03-LK-00x plate/bracket collimator set
Connection with E1701D	E1701D baseboard plus LP8 Extension optionally: Digi I/O Extension (to read error states of the laser) optionally: E1701dock (for simple and easy connection with the laser using a 1:1 D-SUB25 cable only)
Connection with E1702S	E1702S baseboard optionally: Digi I/O Extension (to read error states of the laser)
Connection with E1803D	E1803D controller optionally: E1803dock MOPA (for simple and easy connection with the laser using a 1:1 D-SUB25 cable only)

The QCW series pulsed/CW fiber lasers provide high pulse energy and come with a competitive price. They can be operated with the E1803D controller card. In BeamConstruct they can be configured as "MOPA (MO, AOut0)".

Model	RFL-QCW75	RFL-QCW150	RFL-QCW300	RFL-QCW450
Output Power (average, CW)	120 W	250 W	300 W	450 W
Output Power (average, pulse)	75 W	150 W	300 W	450 W
Output Power (maximum)	750 W	1500 W	3000 W	4500 W
Wavelength	1080±5 nm
Frequency range	0..5 kHz
Output power variances	<3 %
Output fiber core	12, 25, 50 um		25, 50, 100, 200 um	50, 100, 200 um
Pulsewidth	0,05..50 msec
Output power range	10..100 %
Laser cable length	5 or 10 m
Required power supply	230 V, single phase		400 V, three phases
Cooling	Air
Dimensions	280x440x148 mm	485x763x237 mm	570x565x234 mm
Possible scanhead	HALscan 16.20 1064 nm¹⁾	HALscan 20.20 1064 nm¹⁾	HALscan 30.20 1064 nm¹⁾
Connection with E1803D	E1803D controller optionally: E1803dock MOPA (for simple and easy connection with the laser using a 1:1 D-SUB25 and a 1:1 D-SUB9 cable only)

¹⁾May require watercooling and special mirrors for extended power range

The D-series CO₂ lasers are easy to connect, can be used with 0..200% duty cycle and allow cooling with air or water optionally. In BeamConstruct only CO₂ laser mode needs to be enabled and the duty cycle has to be set to 100%.

Model	DaVi D30i	DaVi D30	DaVi D55i	DaVi D55
Output Power	17 W+	30 W	35 W+	55 W
Wavelength	9300 nm	10600 nm	9300 nm	10600 nm
Frequency range	0..25 kHz
Output power variances	<1,5 %	<5 %	<5 %
Beam size	18 ±0,2 mm
Beam quality	M²<1,2
Polarisation	>100 to 1 fixed linear
Pulsewidth	0,05..50 msec
Output power range	10..100 %
Laser cable length	5 or 10 m
Required power supply	48 V, 575 W		48 V, 950 W
Cooling	Air or water
Dimensions	357x92,5x142 mm		537x92,5x154 mm
Possible scanhead	HALscan 10.20 10600 nm
Connection with E1701D	E1701D controller baseboard, simple connection via 2 wires for laser control optionally: Digi I/O Extension (to read ready-state of the laser), simple connection via 2 wires
Connection with E1702S	E1702S controller baseboard, simple connection via 2 wires for laser control optionally: Digi I/O Extension (to read ready-state of the laser), simple connection via 2 wires
Connection with E1803D	E1803D controller, simple connection via 2 or 4 wires

Several other types of laser sources with other power values, wavelengths and parameters are available on request.
